MILLING MACHINE Black Box Controller Bundle with 4pcs 2.45N.m Motors for Queen Bee CNC Desktop Mill/WorkBee Milling Machine DIY Engraving

1 Set
MOQ
MILLING MACHINE Black Box Controller Bundle with 4pcs 2.45N.m Motors for Queen Bee CNC Desktop Mill/WorkBee Milling Machine DIY Engraving
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Application: MILLING MACHINE
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Video outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Weight: 12
Warranty: Unavailable
Showroom Location: None
Core Components: PLC, Engine, Motor
Item Type: CNC Electronics
Model Number: BlackBox Motion Control Bundle
compatible software: GRBL
After Warranty Service: Online support
Certificering: CE
Cable-1: 4 Core Shielded Cable
Cable-2: 2 Core Shielded Cable
Basis informatie
Certificering: CE
Model Number: BlackBox Motion Control Bundle
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Bundling+Plastic Bag+EPE Foam+Layers of carton+stretch film wrapping
Productomschrijving
BlackBox Controller Bundle

The BlackBox Controller Bundle contains all the hardware for powering your QueenBee, WorkBee or other CNC machine.

This kit comes with all the electronic parts you need to run a 3 axis CNC machine.
The software needed to run your CNC machine is a service available to you, free of charge.
This plug and play CNC electronics bundle uses all the same high-quality parts that we use on our OpenBuilds Machine Bundles!

Features

* Perfect for CNC Routers / Laser cutters / Plasma Cutters and more…
* Popular featured rich BlackBox Motion Control System
* Xtension connectors for quick and reliable connections

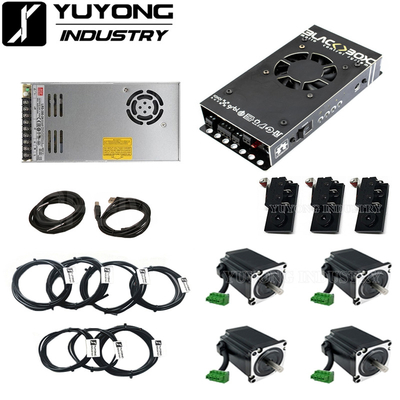

Bundle Includes:
* 1x BlackBox Motion Controller System
* 1x 24V Meanwell Power Supply Bundle
* 3x Xtension Limit Switch Kit
* 4x Xtension Wire 4 Conductor for Stepper Motors
* 3x Xtension Wire 2 Conductor for Limit Switches
* 4 x High Torque 2.45N.m Nema23 Stepper Motors
* Free OpenBuilds CONTROL Software


More Details:

Control System:

BlackBox Motion Control System:

* 10 Amp Input Power Fuse
* Configurable Relay for generic use cases (Plasma trigger, Coolant Pumps, Spindle control, etc )
* Door Interlock signal connector to allow machines with enclosures to pause/resume when the door opens/closes
* 4X High Powered 4.0A (peak) Stepper Drivers
* Auxiliary Serial Input for alternative connectivity expansion
* USB Interface for Plug and Play
* Up to 24v 5A switched output for coolant devices such as 24v DC pumps, solenoids, contactors, or Solid State Relays
* Input Power Polarity protection with indicator LED
* 5v PWM and 5v Direction Spindle Signals
* VFD Spindle Support (0-10v)
* Plug and Play easy connectors that work directly with the OpenBuilds Xtension wiring ecosystem
* 3 x Endstop inputs with optional power output (Selectable 5v/24v) for use with mechanical or powered
switches such as Inductive sensor
* Endstop inputs are protected against high voltages to allow for use of 24v Inductive Sensors
* XYZ Probe input
* Slave Axis configurable as a slave X, Y or Z
* Up to 1/32 Micro stepping (Defaulted to 1/8 for higher Torque)
* Powered by ATmega328p 8 bit Microcontroller running Grbl 1.1
* All new high end Enclosure/Case included, with built in back-lit indication LEDs
* Dimensions 171mm (mounting flange included) x 80mm x 36.4mm
* Muscle & Brains boards stacked configuration
* Easy V-Slot compatible Mounting
* Well planned locations of all connectors to allow for logical cable management

Power Supply

* Output Voltage-Channel: 24V
* Output Power: 348 W
* Enclosed Case
* Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC
* Output Current-Channel: 14.6A
* Mounting Style: Chassis
* Length: 215 mm
* Width: 115 mm
* Height: 30 mm
* Input Frequency: 47 Hz to 63 Hz


Electrical Cable and connectors

* 4 Core and 2 Core shielded cable for best performance and reduced EMI
* 4 pin Connectors included
* 18 AWG for Power Supply

Limit Switch Kits

* 3 x Micro Limit Switch
* 3 x Limit Switch Plate
* 6 x M3 10mm Cap Head Screw
* 6 x M3 self threading screws
* 3 x M5 8mm Low Profile Screw
* 3 x M5 Drop-in Tee Nut
* NOTE:The holes in the switch will need to be opened a little (3mm drill bit) to allow for the M3 screw or alternatively you can use a M3 tap to cut a thread into the plastic.

High Torque NEMA23

* NEMA 23 (High Torque)
* Shaft Size: 1/4"
* Step Angle: 1.8
* Holding Turque: 2.45N.m
* Rated voltage: 3.6V
* Rated current: 3A
* 24-48VDC (Recommended)
Regarding our Shielded Cables:

* The 4 core and 2 core shielded cables are cut in the proper length for customers convenience which meet the needs and multifunction of different size of our CNC Machine.
* This high quality 4 core cable has 2 layers of insulation and 2 shield layers to reduce signal interference and maximise efficiency.

* The four insulated wires are shielded by oxygen free tinned annealed copper wire braid with Aluminium/PET tape (100% coverage) to shield the cores from EMF interference.

* This is again insulated by a thick clear layer of thermoplastic sheath insulation. Suitable for applications requiring electrical/electronic screening of cable. 22AWG suitable for 300V DC and up to 80°C


Please Note:

* The author of this document is not liable or responsible for any accidents, injuries, equipment damage, property damage, loss of money or loss of time resulting from improper use of electrical or mechanical or software products.
* Assembling electrical and mechanical CNC machine components like power supplies, motors, drivers or other electrical and mechanical components involves dealing with high voltage AC (alternating current) or DC (direct current) and other hazardous items which can be extremely dangerous and needs high attention to detail, experience, knowledge of software, electricity, electro-mechanics and mechanics.
* BEFORE MAKING ANY CONNECTIONS OR DISCONNECTIONS POWER MUST BE REMOVED FROM THE DEVICE AND THE CONTROLLER. FAILURE TO DO SO WILL VOID ANY AND ALL WARRANTIES.

* Before starting please read though all the instructions.

* Note : Any Mains power connections must be installed by a Licensed electrician or suitability qualified person
