Two-phase NEMA 17 low vibration BLDC 2.1A-5.6A 24V-50V 23 34 differential signal stepping motor driver step controller for sewing machine

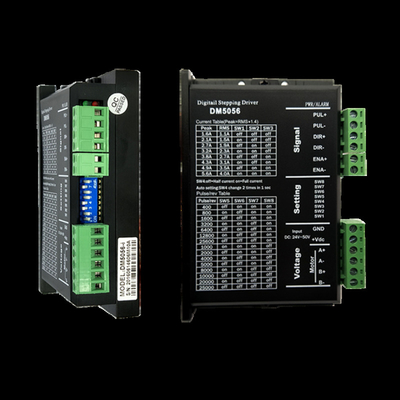

     The DM5056 is a high performance digital two-phase hybrid motor driver. This series of stepper drives adopts the latest 32-bit motor control dedicated DSP chip, and uses advanced digital filter control technology, resonant vibration suppression technology and precision current control technology to achieve accurate and smooth operation of the two-phase hybrid stepping motor. The system's stepper drive features high torque output, low noise, low vibration and low heat, making it ideal for electronic processing equipment, laser processing, medical and small CNC equipment.

Parameters

Our 2 phase stepper motor driver advantages:

• Ultra low vibration and low noise;

• Maximum 512 microstep subdivision, minimum unit 1;

• Input voltage: 24~50VDC;

• Output phase current: 5.6A (Peak);

• 3 optically isolated differential signal input ports: pulse / direction / enable signal, 5 ~ 24VDC;

• DIP switch selection, 16-segment subdivision: 400, 800, 1600, 3200, 6400, 12800, 25600, etc.;

• DIP switch selection, 8 currents: 1.6A, 2.1A, 2.7A, 3.2A, 3.8A, 4.3A, 4.9A, 5.6A;

• Automatic current reduction function: 50% or 90%, dial switch selection;

• It has protection functions such as overvoltage, undervoltage, overcurrent and motor open circuit detection.

Installation demension

Wiring diagram

 Working current settingDIP Switch

Kit with 57mm, 60mm, 86mm stepper motor:

Our hot selling 2 phase stepper driver

 Application

Unit Size: 118x75.5x34mm

Package: packed with white box, quantity per carton will depend on the optional carton size.

Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.
